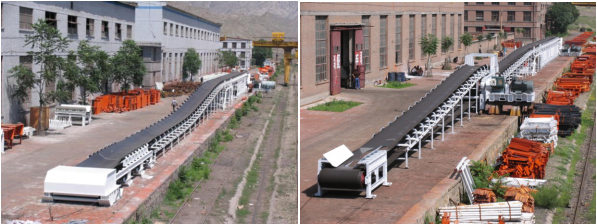

Mine use road way telescopic belt conveyor
   Time: 2016-12-07

Product name: mine use road way telescopic belt conveyor




Product introduction: mine use road way telescopic belt conveyor is type of belt conveyor used as telescopic underground transportation, matching belt conveyor for longwall face, also used as roadway development transportation or other transportation usually has viable distance material conveying. It corporate with matildas, compare with common belt conveyor it has extra belt loading device and belt rolling device etc, when travelling kart is moving to one end, belt goes into belt loading device, retreat the tail drive; extent the tail drive when the other way around. Therefore, the belt conveyor has telescopic feature.



Detail Contents:



Before 2004, all the domestic telescopic belt conveyor use the belt width less than 1200mm small face conveyor, large roadway telescopic belt conveyors are mainly imported.



2004, we finished the domestic made 1400 belt width road way telescopic belt conveyor project with Shenghua Group Shendong Company Daliuta mine, successfully design and manufacture the road way belt conveyor. Up to now, we sold 250 pieces similar products (belt width 1400mm), replaced import equipment, it becomes main model for domestic coal mine, also export to Russia etc.



2009, we designed 1600mm belt width road way telescopic belt conveyor. It successfully been used at Shanxi Hongliulin and other mines. Up to now, we have already manufacture 7 similar belt conveyors.



2011, we designed the prototype of 1800 belt width roadway telescopic belt conveyor, it already has the mine safety certificate and production permission, and other relevant certificates.


1、 discharge part      2、drive unit  3、belt storage device   4、rotation bracket of belt storage device  5、tensioning device of belt storage    6、belt clips 7、belt roller 8、main body



1discharge part 2drive unit  3belt storage device   4rotation bracket of belt storage device   5tensioning device of belt storage    6belt clips 7belt roller 8main body 9middle drive unit 10fixed tail drive (matildas)



Figure 2 Floor layout of DSJ160/300/3×500+3×500
